WEN (Chicago Pneumatic) Pneumatic Engraving Pen-Chisle with medium needle (made in Sweden!) #300-P2

Item number
HIGH 1010337
with medium needle 38 mm and special bushing for chisel and knife.

The best quality made in Sweden!

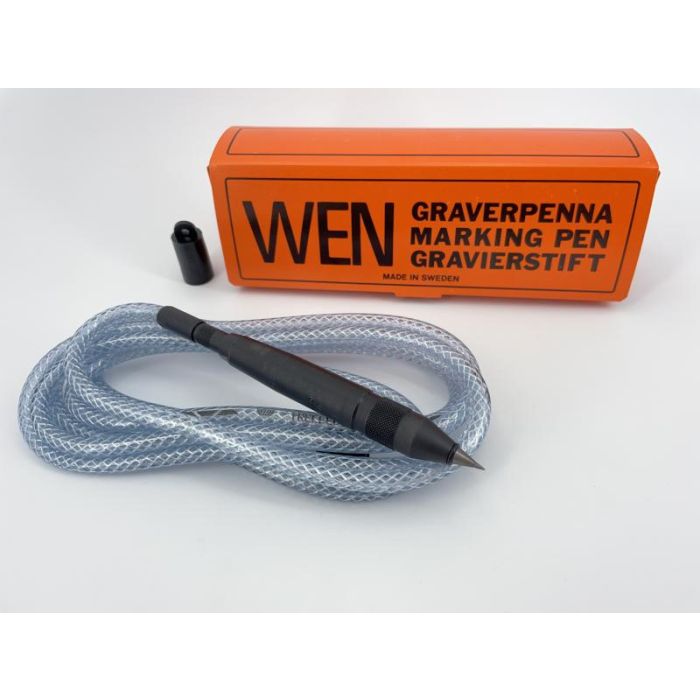

WEN Engraving Pen is compressed air powered and works with extremely low vibrations at a frequency 2 to 3 times higher than that of competing pens. The result is a sharp and deep continuous mark, very valuable for all fossil preparation work.

The pen can be equipped with three alternative oscillating stylus needles; fine, medium or coarse. It can also be equipped with an oscillating knife (e.g. for carving in wood) or an oscillating chisel (e.g. for preparation of small rocks). The stylus needles are made from tungsten carbide in order to reach a long service life.

One daily drop of oil in the air supply line is all maintenance that is required.

The WEN Engraving Pen is as standard supplied with a medium stylus needle installed and a 2,5 metre reinforced industrial type hose.

Compressor is not included.

The WEN Engraving Pen is CE-certified.

Technical data:

Air supply pressure: 6-7 bar
Noise level in idle: 65 dB(A)
Air consumption (approx.): +15 l/min Weight: 150 grams
Frequency: 540 strokes/sec.
Size: 162 x 17 mm
Vibration level: 1,6 m/s2
Hose length: 2,5 metres

More Information
shipment-weight, NOT netto weight (kg) 0.500000
