OPTIKAM C-E2 - eyepiece camera for all microscopes

OPTIKAM C-E2 - eyepiece camera for all microscopes

User-friendly eyepiece camera to be combined with any microscope

• Direct connection into the eyepiece tube instead of one of the eyepieces (23 mm, 30 mm, and 30.5 mm diameter)
• No additional adapters required
• Especially useful for educational purposes
• Removable mini-USB cable
• Includes the user-friendly and intuitive OPTIKA Pro View & OPTIKA Lite View software

Technical Specifications:

• Digital camera resolution: 2 MP
• Analog camera resolution: None
• Signal output: USB 2.0
• Audio signal: None
• Sensor size: 1/3.2”
• Sensor technology: CMOS
• Image format: 4:3
• Full image size: 1600 x 1200
• Frame rate (full resolution): 5 fps (1600×1200) / 7.5 fps (1280×1024) / 22 fps (640×480)
• Maximum exposure time: –
• Onboard memory: Automatic
• External memory card: None
• External camera power: PC USB
• White balance: Automatic
• Gain control: Automatic
• Backlight control: Automatic
• Exposure control: Automatic
• C-Mount connection: No
• CS-Mount connection: No
• Arm length: –
• 8 mm objective: No

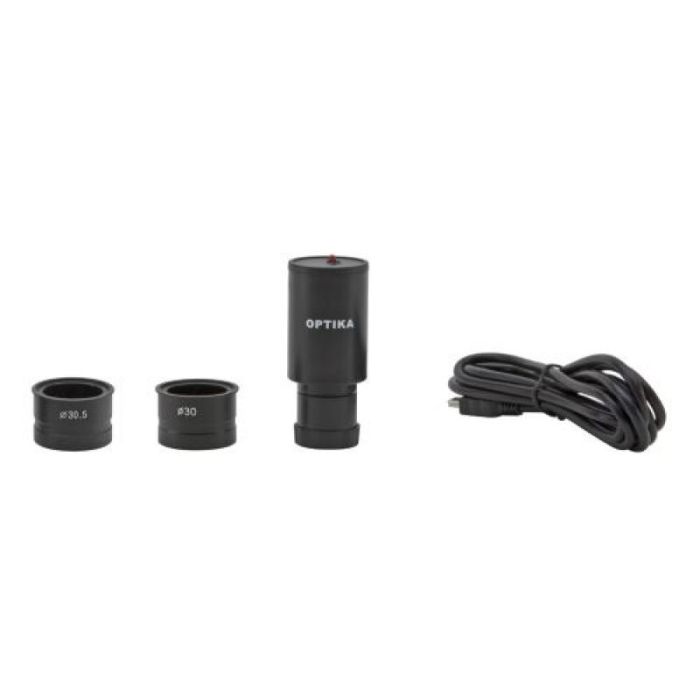

Included Accessories:

• 30 mm and 30.5 mm ring adapters (for the built-in 23 mm eyepiece adapter)
• USB cable

Application Instructions:

• Ensure the camera is securely connected to the eyepiece tube before use.
• Handle the device gently to avoid damaging the sensor or connectors.
• After use, disconnect the USB cable, cover the device to protect it from dust, and store it in a dry and clean location.

Electrical and Operational Precautions:

• The camera is powered through USB 2.0; ensure a compatible PC connection is available before use.
• Do not expose the USB cable or connectors to moisture.
• Users should avoid forceful insertion or removal of the camera from the eyepiece tube to prevent damage.

Legal Notes:

Safety:
We accept no liability for damages caused by improper and/or non-recommended use. Please carefully check the suitability of the product before alternative use.

• The device has been designed with a CMOS sensor and supports automatic functions such as white balance, gain, backlight, and exposure control. Avoid external interference with these features during operation.
• Use only the provided USB cable and adapter rings to ensure optimal performance and avoid compatibility issues.
• Never attempt to disassemble the camera or repair internal components. For maintenance, contact OPTIKA or an authorized service provider.
